Everything in sync. Nothing at risk.

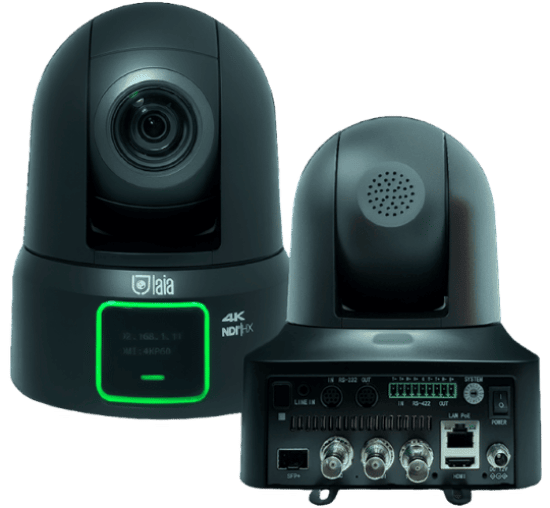

In high-end broadcast production, raw power is useless without control. Every synchronization error between cameras, every missed shot has consequences during a live broadcast. Broadcaster Pro 25X Fiber ( PRC-425FB) is built specifically for this environment: 1/1.8″ CMOS sensor, 4K/60fps, uncompressed 12G-SDI, multi-camera Genlock, AI Tracking, and full connectivity.
These aren't isolated features. They're layers of a single solution, designed to keep everything running smoothly.
Sync with the moment
Capture every moment as it happens. From the fastest action to the finest detail, every frame remains sharp, smooth, and usable.
The 1/1.8-inch Sony CMOS sensor ensures that the camera captures exactly what the eye sees, with the fidelity required for professional production.

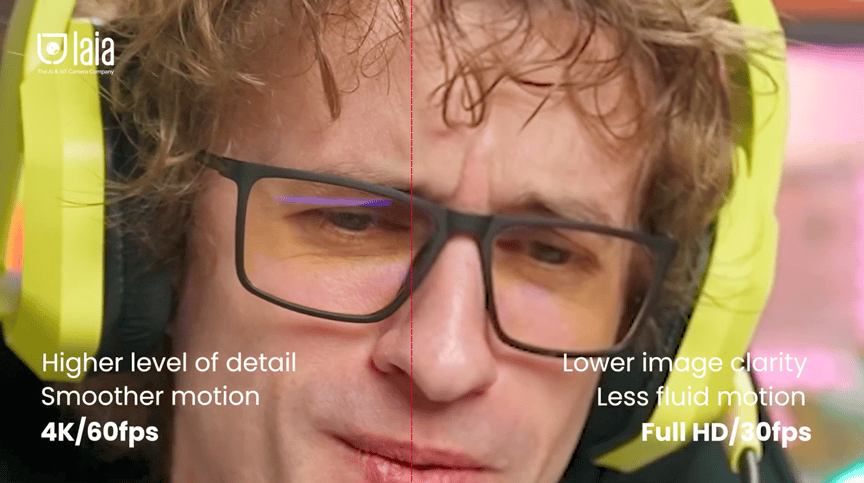

At 4K and 60 frames per second, every detail comes through perfectly. Every shot is captured exactly as it happens. No lag. No loss of detail.
Sync with the production
Genlock locks each camera to a common reference signal, ensuring that the entire system operates on the same time base. In multi-camera setups, this makes all the difference: without synchronization, every cut between shots is a risk. With it, the production flows smoothly, without glitches, without image jumps, and with no room for error during a live broadcast.
Broadcaster Pro Fiber natively into professional broadcast infrastructures and is compatible with the leading broadcast ecosystems on the market, including Blackmagic Design infrastructures and equivalent systems.
Sync with the distance
Miles away. No signal loss.
The SFP+ output on the Broadcaster Pro 25X Fiber allows for the transmission of video, audio control signals over fiber optics, covering distances of several kilometers without signal degradation. The fiber's bandwidth effortlessly supports the 4K/60fps stream generated by the camera.
Sync with the connection
In a multi-camera environment, a fraction of a second can make all the difference. Your signal arrives. In sync.
Presenter mode

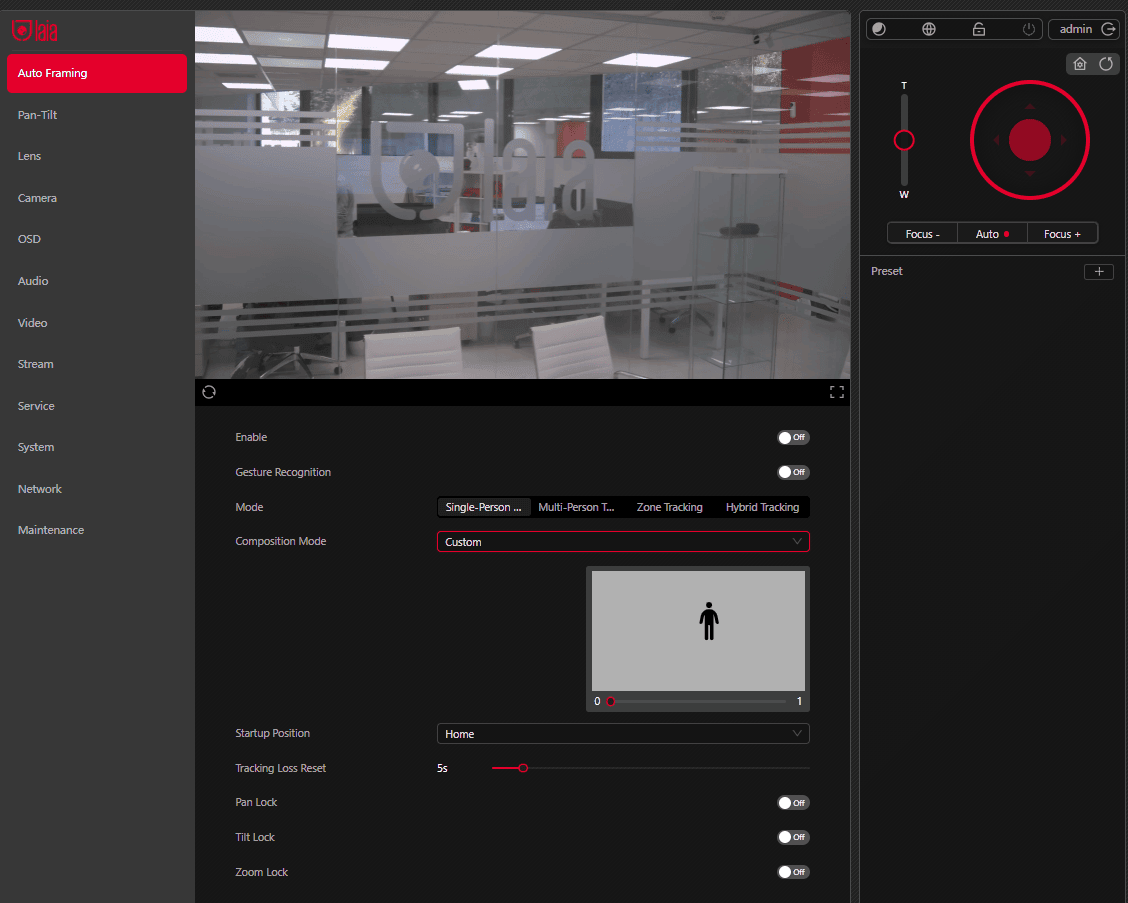

Smart Auto-Framing
The system automatically adjusts the composition based on the number of people in the frame, keeping them properly framed at all times without any manual intervention.
Zone mode
Hybrid mode
Works With
Specifications
Image parameters
Resolution: HDMI: 3840x2160p60/59/50/30/29.97/25, 1920x1080p60/59/50/30/29.97/25, 1920x1080i60/59/50, 1280x720p60/59/50 -12G-SDI: 3840x2160p60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i60/59.94/50, 1280x720p60/59.94/50 – 3G-SDI: 1920x1080p60/59/50/30/29.97/25, 1920x1080i60/59/50, 1280x720p60/59/50, – SFP+: 3840x2160p60/59/50/30/29.97/25, 1920x1080p60/59/50/30/29.97/25, 1920x1080i60/59/50, 1280x720p60/59/50, – LAN: Up to 3840×2160p60
Image sensor: 8.42 megapixels, 1/1.8-inch CMOS sensor
Video system: HDMI / 12G-SDI / 3G-SDI / SFP+ / LAN, up to 4K/60 fps
Minimum illumination: 0.1 lux (F1.8, AGC ON)
SNR: >50 dB
Digital noise reduction: 2D, 3D
Backlight Compensation: On/Off
Aperture: F1.6–F14, CLOSE
Shutter speed: 1/60 – 1/10,000
White Balance: Auto, Manual, Indoor, Outdoor, One, ATW, Specific Color Temperature
Exposure mode: Auto, Manual, Shutter priority, Aperture priority
Focus mode: Auto, Manual, One
Vertical and mirror flip: Yes
Dynamic range: Off, 1–8
Image settings: Brightness, Hue, Saturation, Contrast, Sharpness, B/W Mode, Gamma Curve
Lens
Horizontal field of view (Wide – Tele): 59.2° (W) ~ 2.5° (T)
Focal length (Wide – Tele): 7.1 mm (W) ~ 171.95 mm (T) / 0.28 in ~ 6.77 in
Optical zoom: 25x
Digital zoom: 16x
Minimum focusing distance: 30 cm
Aperture: F1.61–F5.19
Pan/tilt
Pan/Tilt Range: Pan: -174° – +174°, Tilt: -30° – +90°
Pan/Tilt Speed: Pan: 0.1°/s – 35°/s, Tilt: 0.1°/s – 30°/s
Number of presets: Up to 255 presets (10 via remote control)
Preset speed: Pan: 35°/s, Tilt: 30°/s
Lock: Pan, Tilt, and Zoom locks available

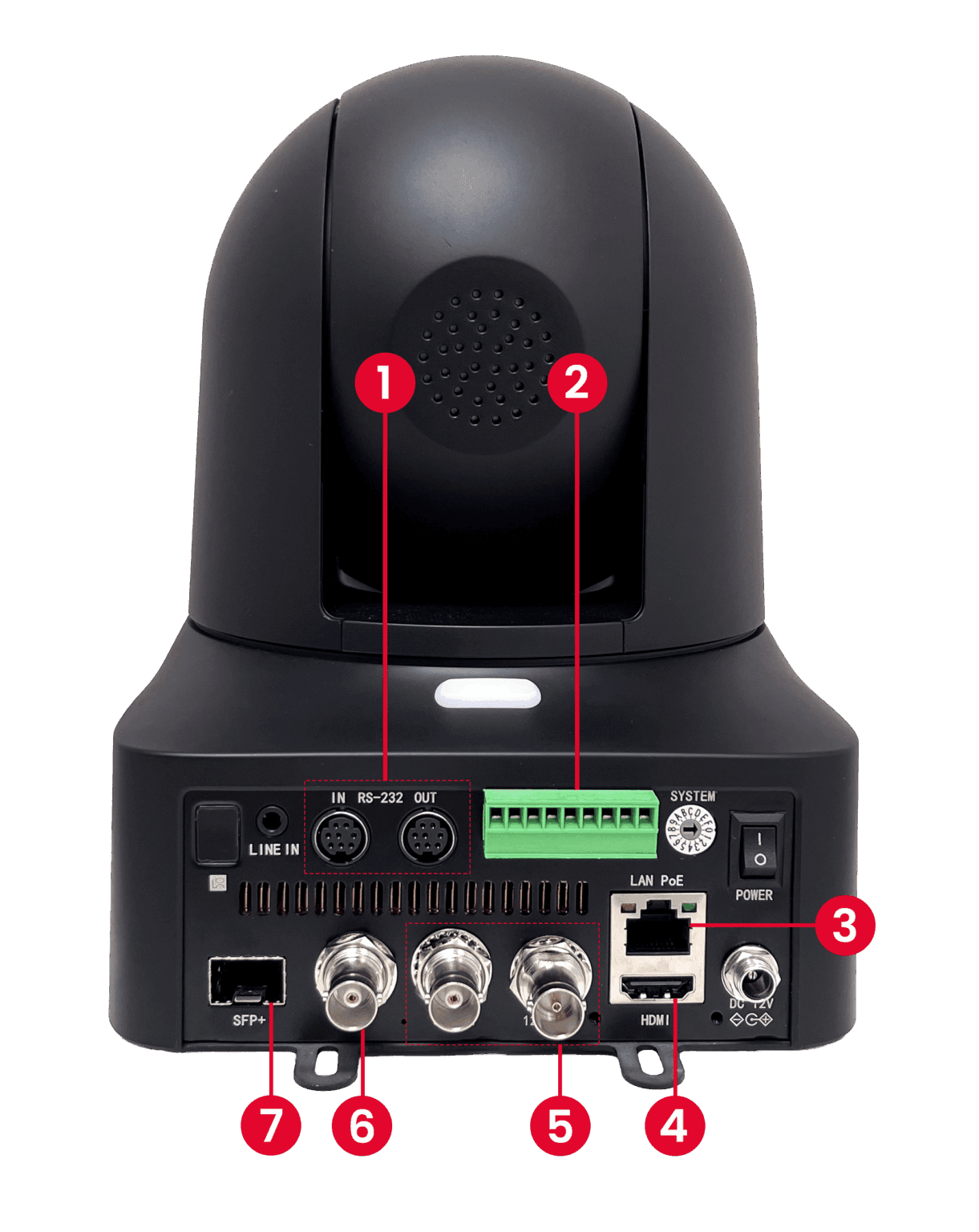

Interface
Video outputs (connectors): HDMI (HDMI Type A), 12G-SDI (BNC), 3G-SDI (BNC), SFP+ (SFP28 transceiver), LAN (RJ45)
Video compression formats: H.264, H.265
audio input audio connectors): Line In: Analog. 3.5 mm stereo mini-jack
audio compression formats: AAC Synchronization interface (connectors): Genlock/Timecode (BNC)
Network interface: RJ45 (10/100/1000 Mbps Ethernet port) Network protocols: NDI|HX2/3, FreeD, RTSP, RTMP, RTMPS, SRT, VISCA over IP, ONVIF
Serial control interfaces: RS-232 (8-pin MiniDIN IN & OUT), RS-422/RS-485 (9-pin Phoenix IN), IR
Serial control protocols: VISCA, PELCO-D, PELCO-P
Power Supply Connector: HEC3800
General
Power Supply Requirements: 12 V DC ±10% or PoE+
Consumo de energía: <18 W
Color: Black
Operating/storage temperature: 10 °C – +50 °C | -10 °C – +70 °C / 14°F ~158°F | 14°F ~122°F
Operating/storage humidity: 20% – 80% | 20% – 95%
Dimensions (L x W x H): 193 mm x 158 mm x 208 mm / 7.60 x 6.22 x 8.19 in
Weight: 1.9 kg / 4.19 lb
Tripod thread hole size: 1/4-20 UNC
Warranty: *years with Prime Support Service (*Extendable to 6 years by registering the product within 2 months of the invoice date)
Included accessories: Power Supply, IR remote control, wall mount, 200 cm RS-232 control cable, user manual
AI functions
Tracking modes: Presenter tracking, Zone tracking (4 tracking zones), Hybrid tracking, Auto Framing
Lens selection: Available (via web interface only)
Privacy mask: Available (via web interface only)
Gesture control: 5 gestures (enable/disable tracking, change target, zoom in/out)
